Measurements on Microwave Bench:

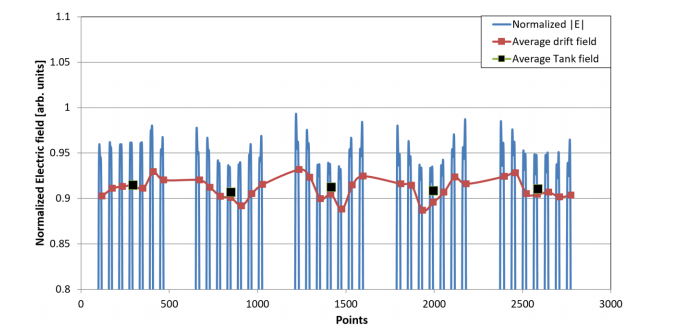

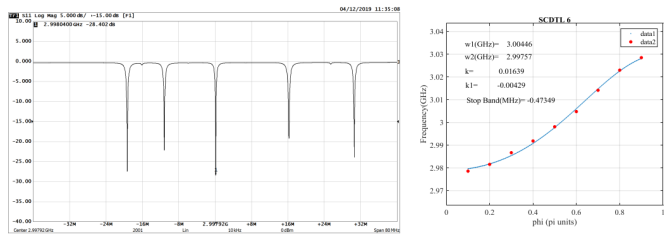

Structure modes, Dispersion curve, Electric field on axis

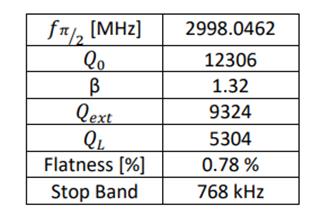

The main structure parameters are:

STATUS —->        Positioned In line. Ready to operate

SCDTL-6 accelerates the SCDTL-6 beam from 45 MeV to 55 MeV

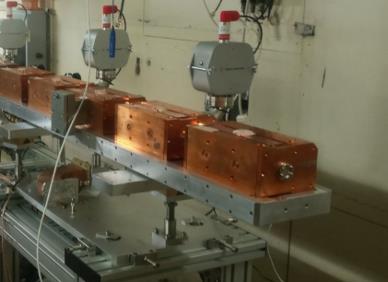

SCDTL– 6 is composed of 5 tanks with 7 cells /tank. In the intertank space PMQs are placed.

Design ENEA; Manufacture: CECOM srl; Brazing TSC srl
